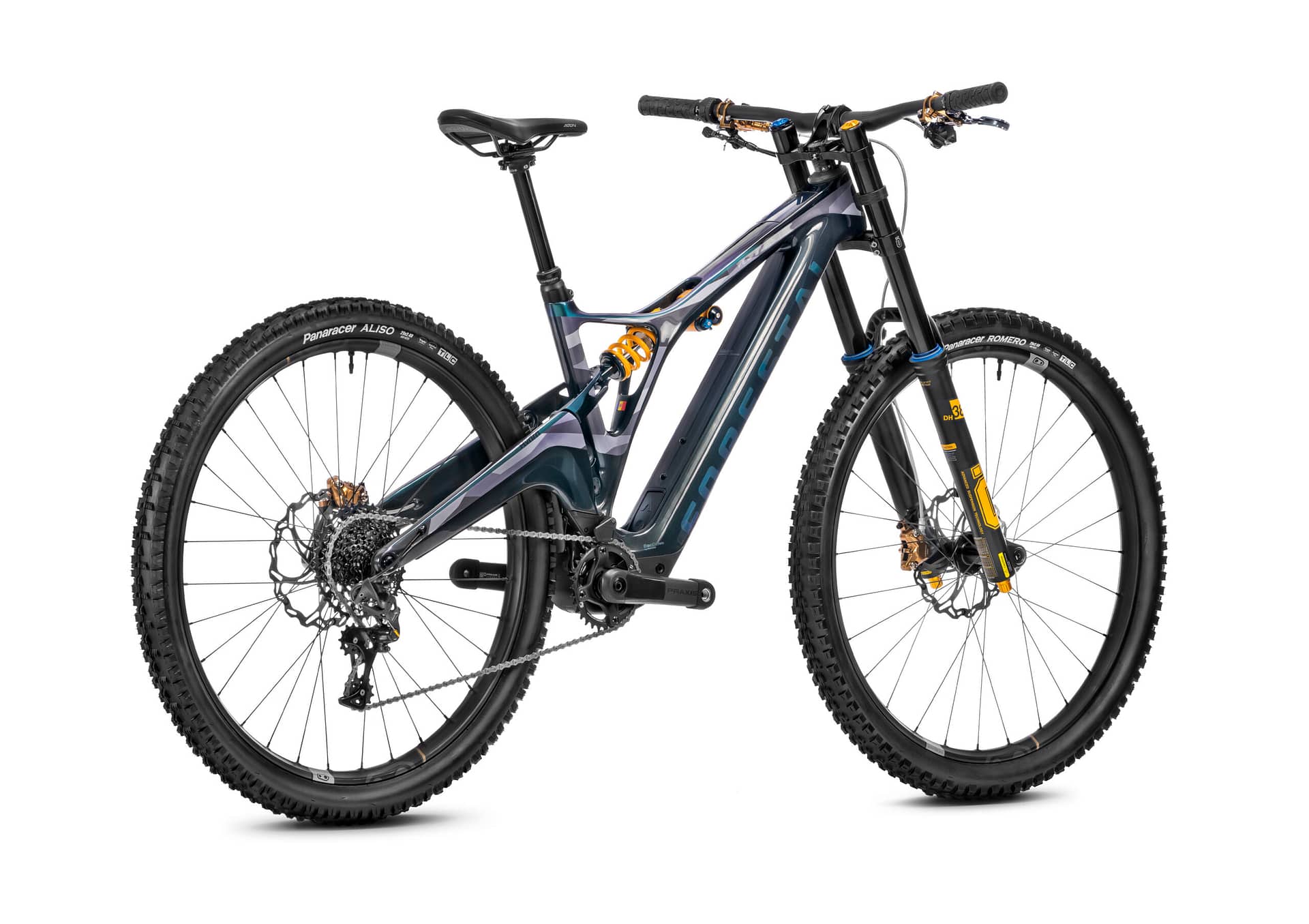

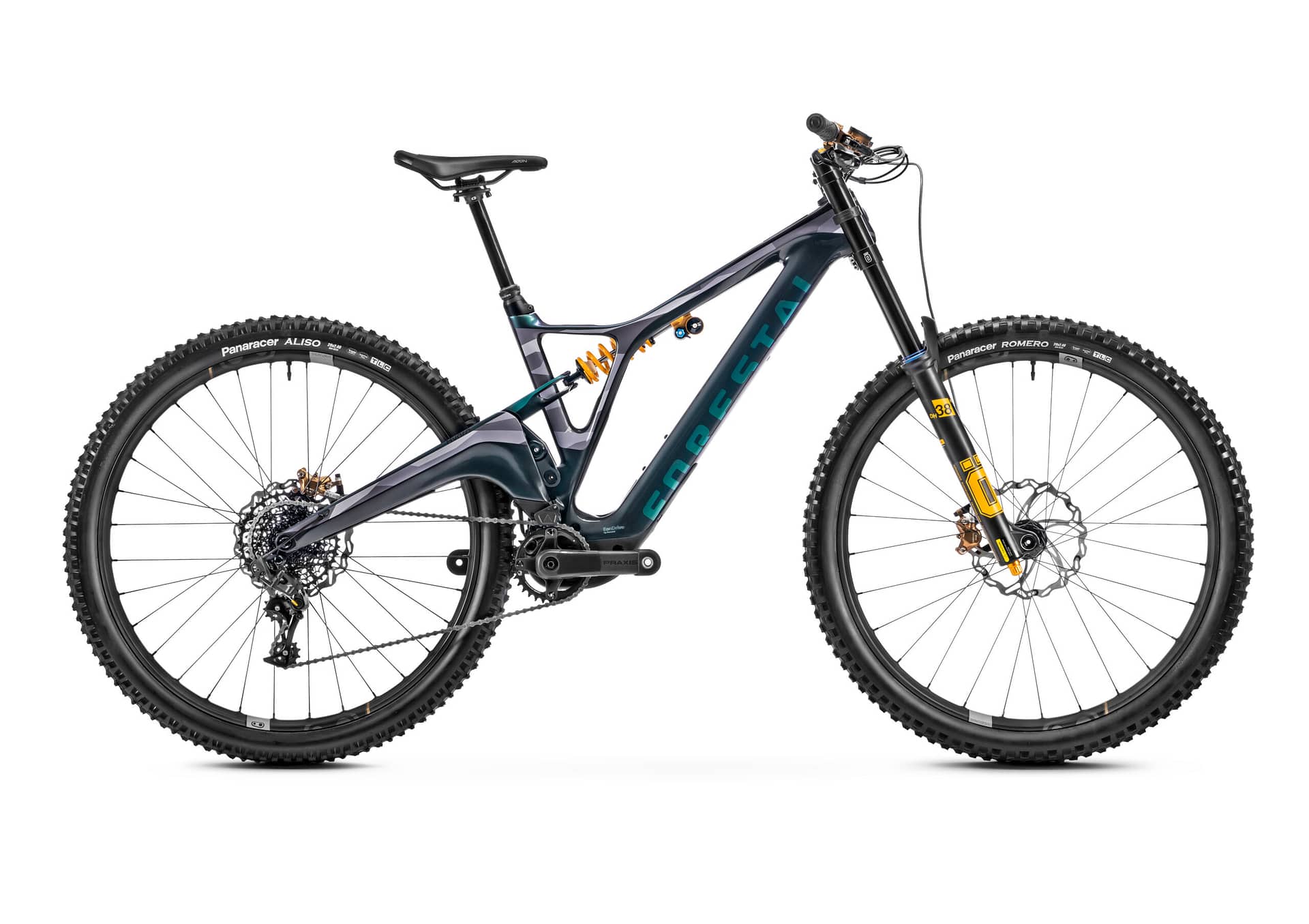

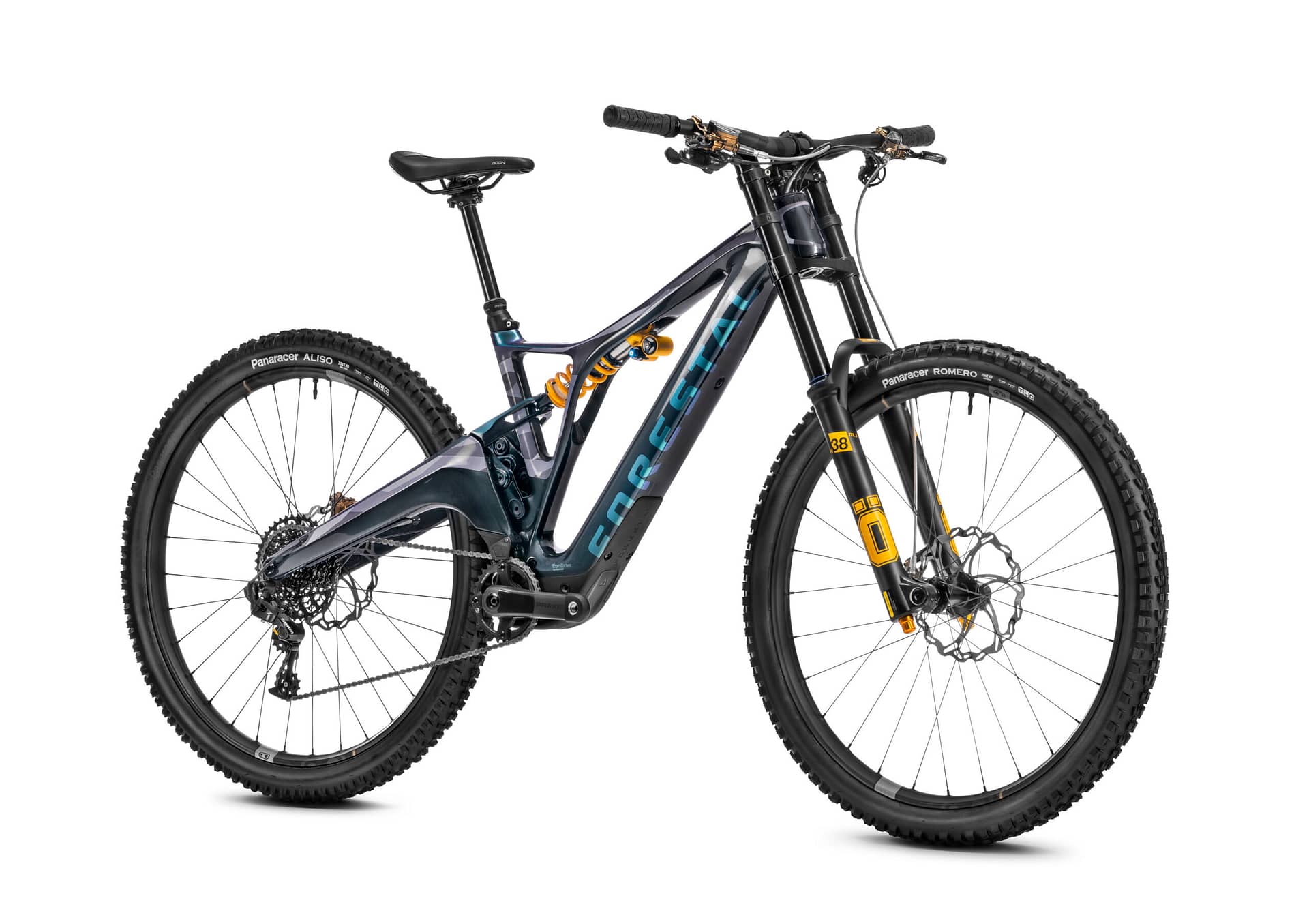

Hydra Diode

29” Downhill / Carbon Rahmen / GPS / Integriertes Display / Light E-MTB

€14,999

Pearl Camo

Finde deinen Fachhändler vor Ort

Spezifikationen

Federung RockShox
Boxxer Select / Super Deluxe Select+
Bremsen Formula
Cura 4
Antrieb SRAM
GX
Laufräder Crankbrothers
Synthesis Alloy DH
Gewicht Frame size M (42.3 lbs)
19,2 kg
Rahmen Forestal Alpha Box Carbon Enduro 29" TR 170
Monocoque construction / Track Ready / 170mm Travel / 2.4kg Size M
Größen S / M / L / XL
Motor Forestal EonDrive
250W / 60Nm / IP67 / 1.95kg / 165 x 105 x 147mm
Akku Forestal Aurora Performance
360Wh / 52V / Integrated / Rapid Charge / 1.8kg / 350 x 72 x 50.5mm
Display Forestal Smart Dashboard
3.2" Integrated HD Transflective touch screen / All conditions resistant
Remote Forestal Smart Trigger
3 Buttons / Battery & Assistance LED Indicators
Gabel Rockshox Boxxer Select 29" 180mm
Charger RC / DebonAir / Tapered / Boost 20×110 / Maxle Stealth / Offset 46mm / Extl Rebound / Low Speed Compression / Gloss Black
Dämpfer Rockshox Super Deluxe Select+ Coil
Metric 230x65mm / Debonair / Extl Rebound / 2 position compression / Custom tune / Spring rates: 300 lbs on S, 350 lbs on M, 400 lbs on L, 450 lbs on XL / Black
Steuersatz Acros Integrated
ZS 56 Top / ZS 56 Bottom / Internal cable routing / Stainless steel bearings
Vorbau Forestal X PP Direct Mount DH
∅ 31.8mm / 7075 T6 Aluminum CNC / Black
Lenker Forestal Oxydon C 780mm
∅ 31.8mm / Upsweep 4∅ / Backsweep 6∅ / Rise 15mm / Toray T700 & T800 Carbon
Griffe Production Privée CR35
Forestal x Production Privée edition / 2-position adjustable (Tour / Race)
Sattelstütze Crankbrothers Highline 7
∅ 31.6mm / Length 125mm Size S / Length 150mm Sizes M, L / Length 170mm Size XL / Black ring / Aluminum 7076 T6
Sattelstützenhebel BikeYoke Triggy X
Custom Forestal w./ Shiftmix
Sattel Fizik Aidon X3 E-MTB
Fibre reinforced nylon / S-alloy rails / 249g / 255 x 145mm
Bremsscheibe vorn Formula Cura 4 Carbon Polish 203mm
4-piston caliper / MixMaster / 6-Bolt Rotors
Bremsscheibe hinten Formula Cura 4 Carbon Polish 203mm
4-piston caliper / MixMaster / 6-Bolt Rotors
Kurbeln Praxis Carbon
Q-Factor 170mm / ISIS Drive / 104 BCD / Length 160mm Sizes S, M / Length 165mm Sizes L, XL
Kettenblatt SRAM X-Sync 2 Eagle
32T, 104 BCD
Schaltwerk SRAM GX
11 Speed / X-Actuation / Long cage / Colour: Black
Schaltauge SRAM UDH
UDH Derailleur hanger / Aluminum
Kassette SRAM PG-1130
10-42T / 11 Speed / Colour: Black
Kette  SRAM GX
11 Speed / Powerlock / Colour: Grey
Schalthebel SRAM GX
11 Speed / X-Actuation / Colour: Black
Vorderrad Crankbrothers Synthesis Alloy 29" DH
Hub CB / 15 x 110mm Boost / Spokes Sapim E-Light / 6-Bolt / Inner Rim 31.5mm / Outter Rim 37.5mm
Hinterrad Crankbrothers Synthesis Alloy 29" DH
Hub CB / 12 x 148mm Boost / Spokes Sapim Strong / XD Drivetrain/ 6-Bolt / Inner Rim 29.5mm / Outter Rim 36.5mm
Reifen vorne Panaracer Romero 29 x 2.4 ST 3Comp.
Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall
Reifen hinten Panaracer Romero 29 x 2.4 ST 3Comp.
Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall

Geometrie

S M L XL
